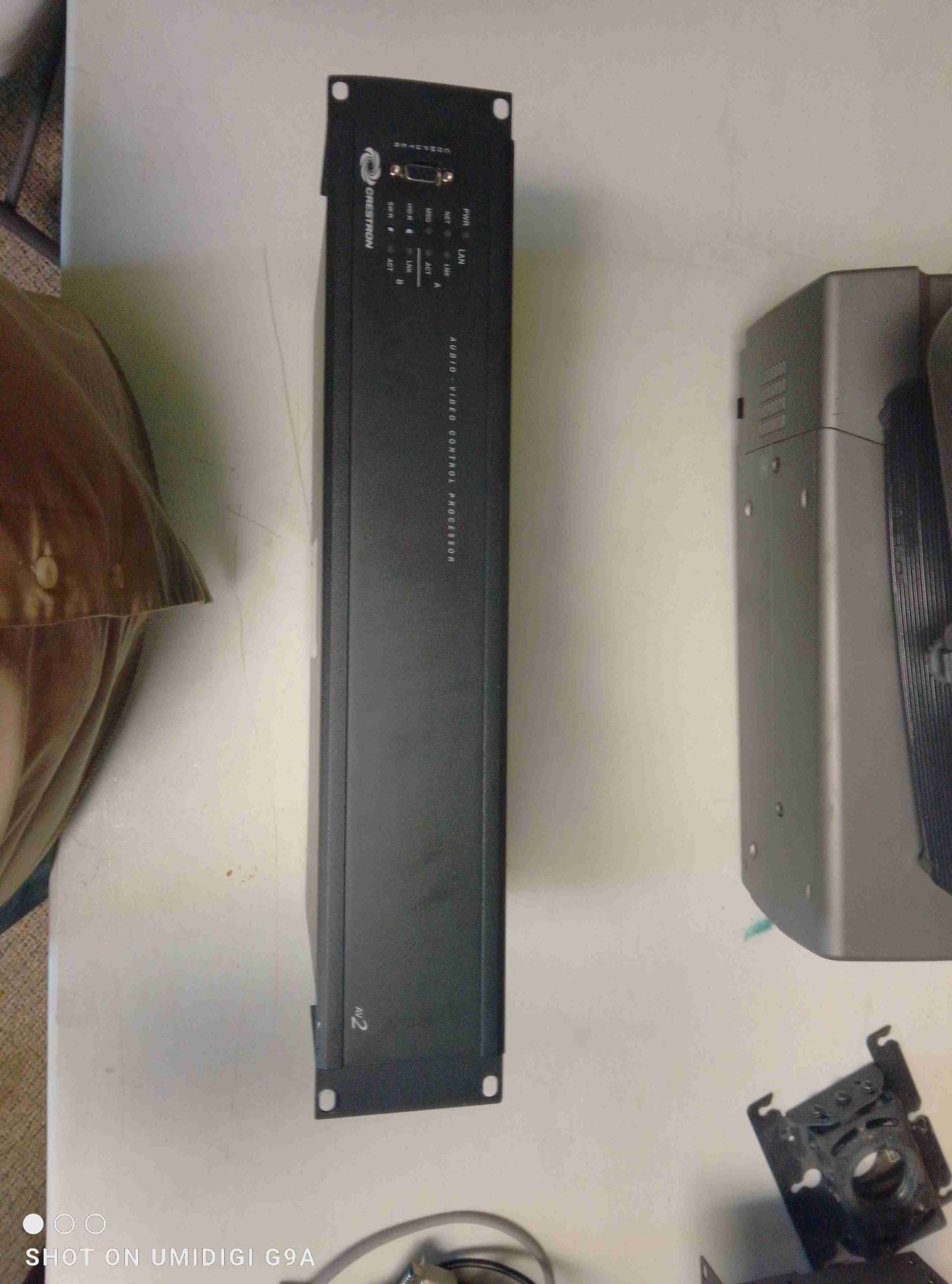

Crestron AV2 2-Series Control System

The Ultimate Integration Platform for Professional AV & Automation

The Crestron AV2 control system represents the gold standard in control processors, offering unmatched flexibility for commercial and residential automation. Built on Crestron’s legendary 2-Series architecture, this powerhouse delivers:

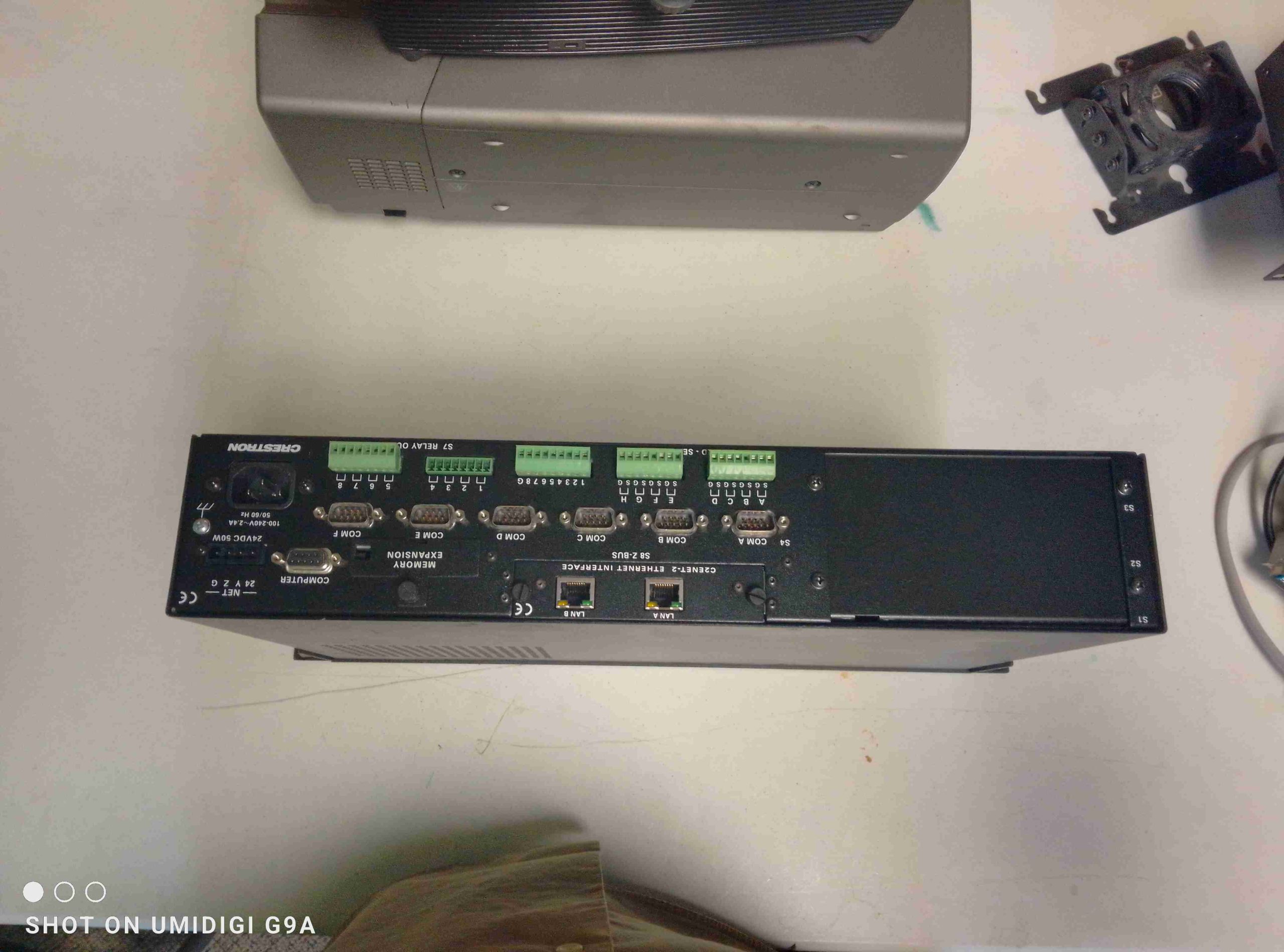

✔ 6 configurable COM ports (RS-232/422/485) for device control
✔ 8 IR/serial ports with individual signal generators
✔ 8 Versiport I/O (digital/analog inputs + 250mA outputs)
✔ 8 isolated relays (1A @ 30V AC/DC) for heavy-duty switching
✔ Cresnet master/slave mode (50W power output)

Technical Specifications Deep Dive

Processing Power

• CPU: 32-bit Freescale ColdFire® microprocessor

• Memory: 64MB SDRAM + 256KB NVRAM + 4MB Flash

• Storage: CompactFlash slot (expandable to 2GB)

• OS: Real-time multi-threaded kernel with FAT32 support

Network & Communication

Y-Bus (40Mbps)          | Z-Bus (300Mbps)
------------------------|-------------------
• 6x COM ports          | • Dual Ethernet
• 8x IR/Serial ports    | • Future audio cards
• 8x I/O ports          | • High-speed control
• 3x expansion slots    | • 1x expansion slot

Physical & Environmental

• Rack Size: 2U (19″ width)

• Power: 100-250V AC, 50W Cresnet output

• Operating Temp: 41°F to 113°F (5°C to 45°C)

• Certifications: UL, CE, FCC, RoHS

Professional Applications

Commercial AV Integration

• Corporate Boardrooms: Unified control of projectors, displays, and conferencing systems

• Digital Signage: Centralized management of media players and video walls

• Museums/Exhibits: Interactive display and lighting control

Residential Automation

• Whole-Home AV: Distributed audio/video system control

• Smart Lighting: Cresnet-enabled dimmers and keypads

• Climate/Security: Integration with HVAC and alarm systems

Command & Control

• Network Monitoring: SNMP support for IT departments

• Facility Management: RoomView™ for asset tracking

• Future-Proofing: Z-Bus ready for emerging technologies

System Expansion & Compatibility

Control Ecosystem

• Touchpanels: All Crestron TSW/XPanel compatible

• Third-Party Devices: RS-232/IR control of projectors, DSPs, etc.

• Lighting: Crestron DIN-1DIM, DIN-8DIM8, etc.

Software Features

• e-Control®2: PC/PDA control interfaces

• SSL Encryption: Secure network communications

• NAT/Firewall: Built-in network protection

Package Contents & Warranty

Not Included:

• CAGE2 expansion cage

• Y-Bus/Z-Bus control cards

• Cables
