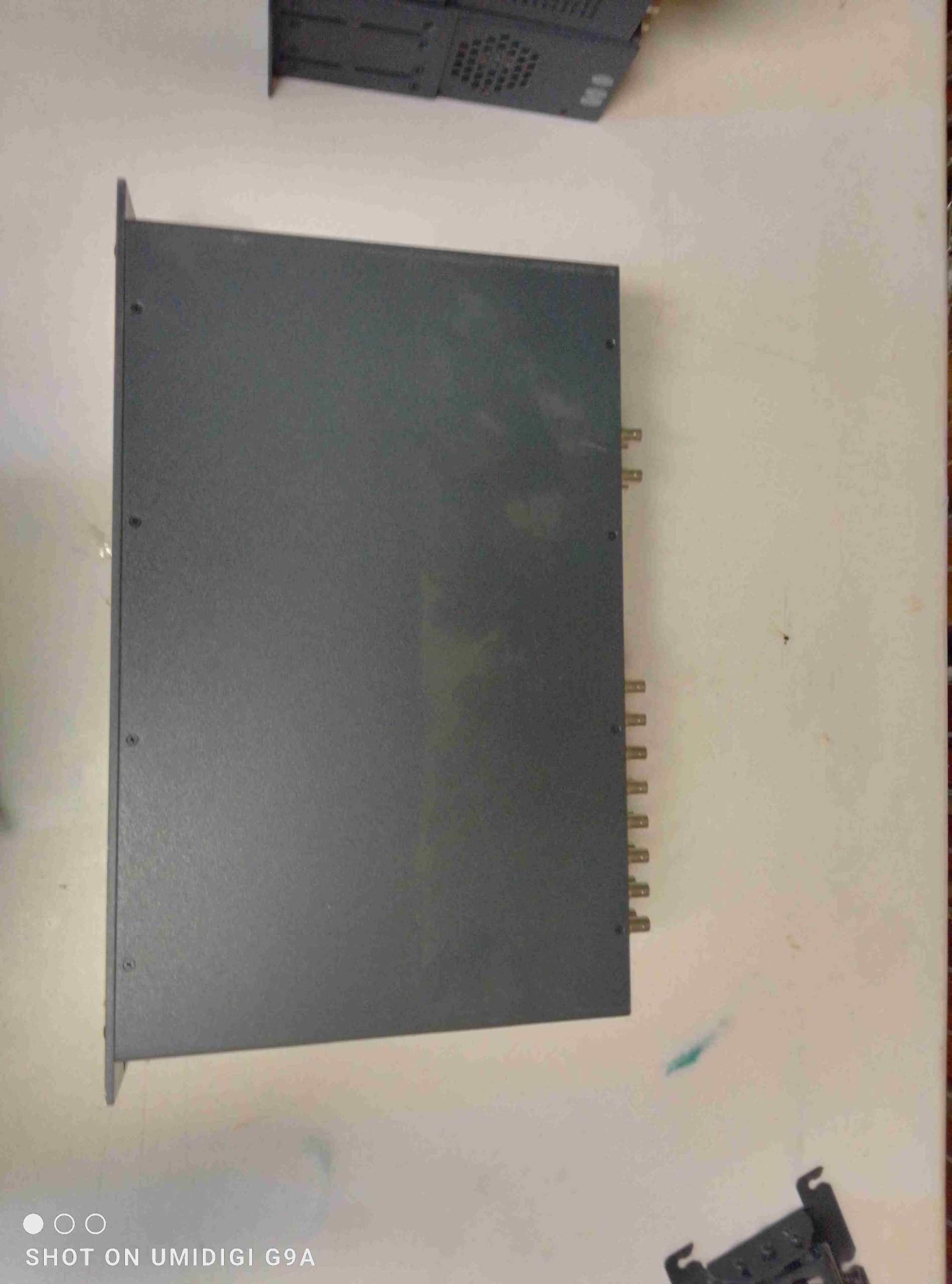

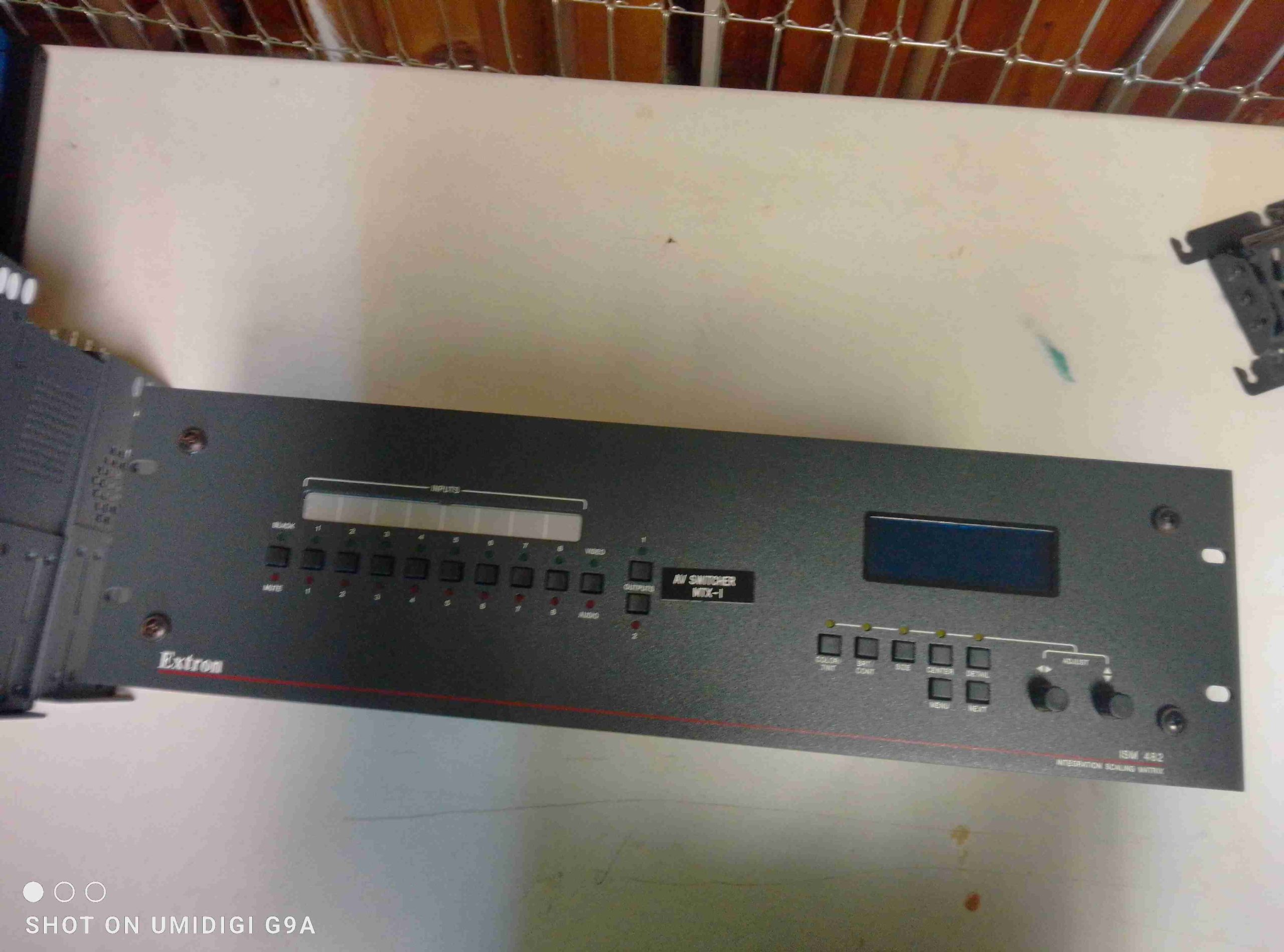

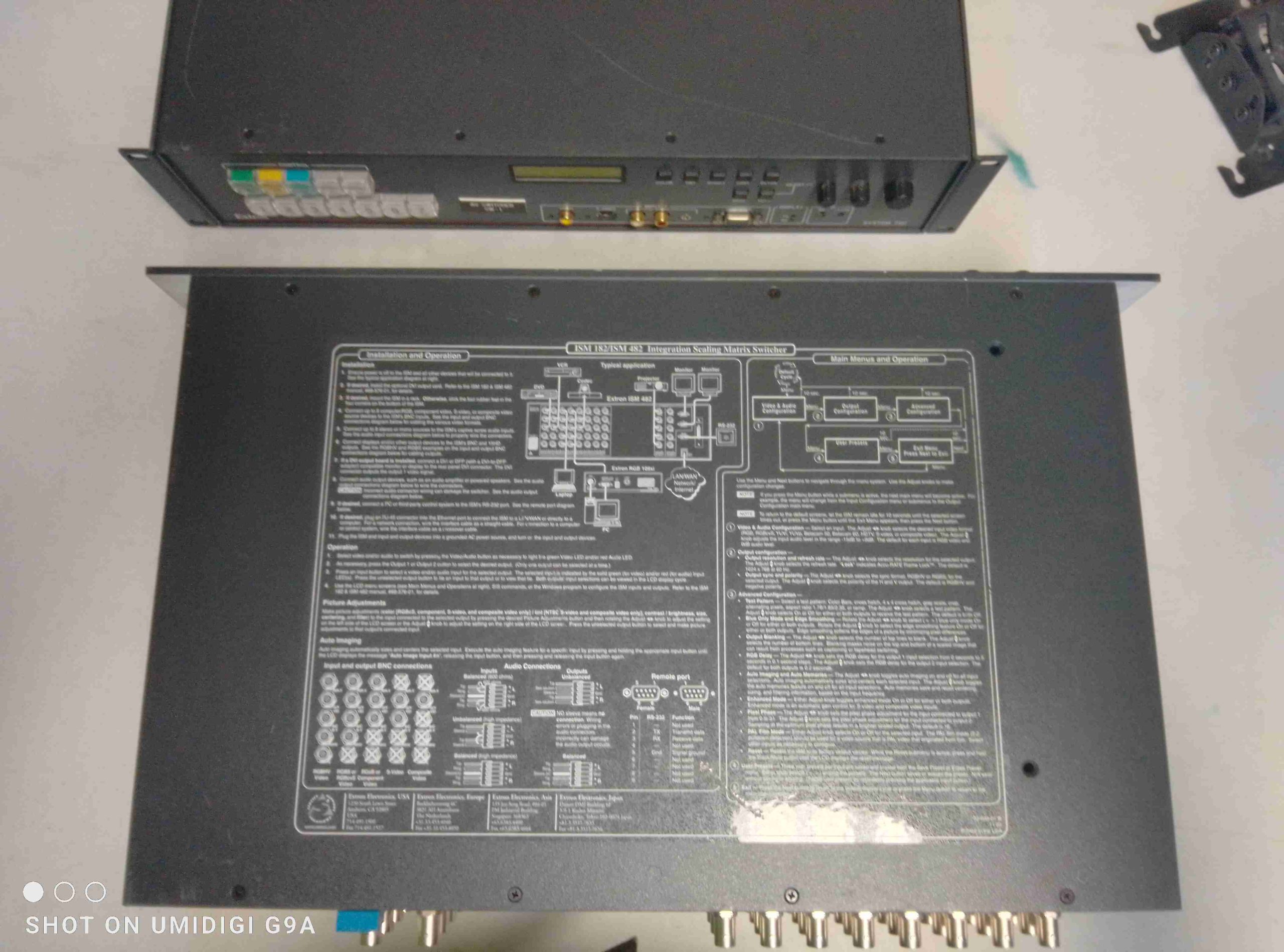

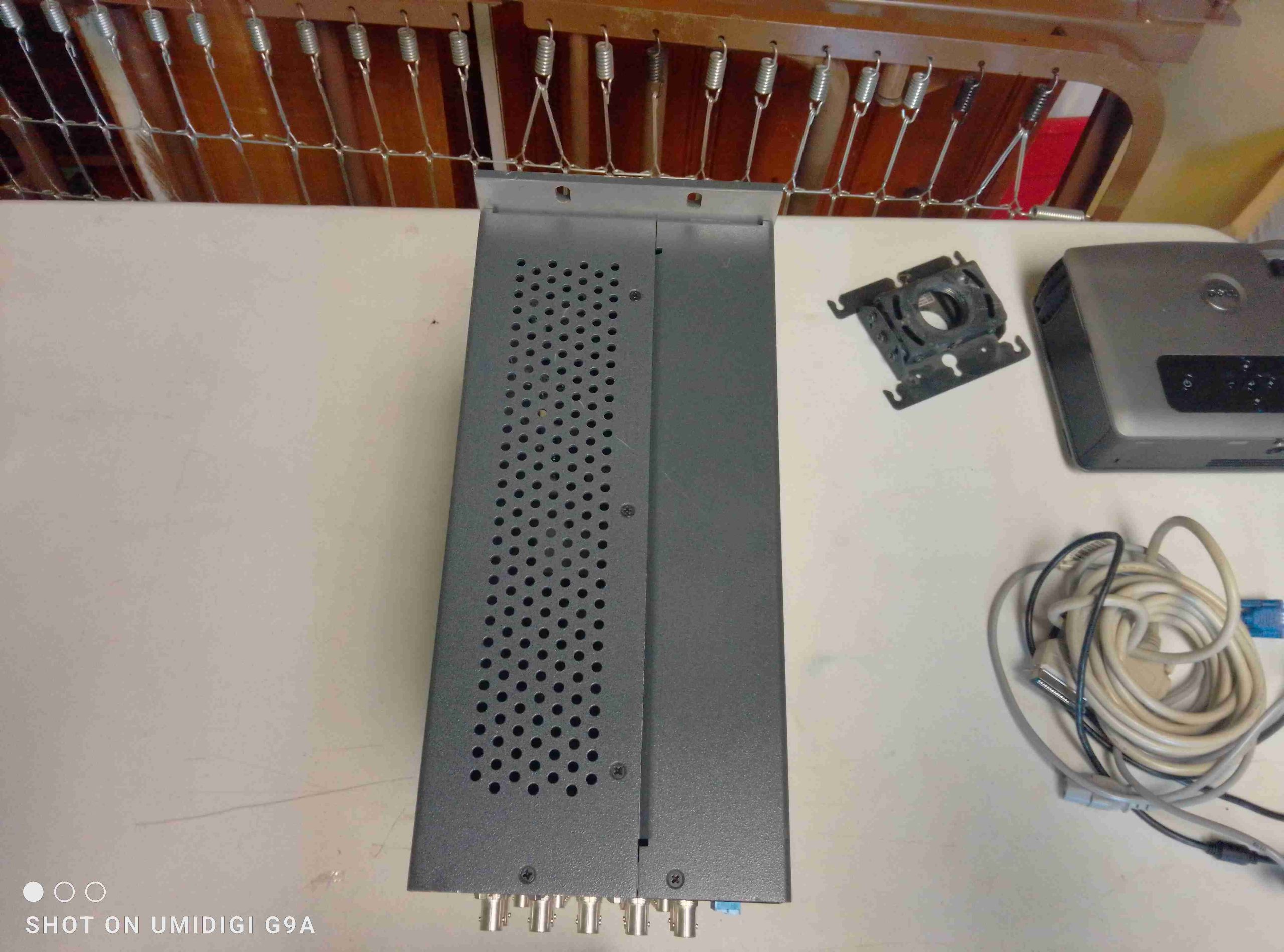

Extron ISM 482 8×2 Integration Scaling Matrix Switcher

The Extron ISM 482 matrix switcher delivers broadcast-grade signal management for mission-critical AV systems. This 8-input, 2-output scaling matrix combines Extron’s legendary processing technologies with unparalleled integration flexibility for boardrooms, command centers, and large-scale installations.

---

Professional Matrix Switching Redefined

8×2 Scalable Matrix Core Features

• 8 Fully Configurable Inputs:
  ▸ RGBHV (5 BNC), RGBS (3 BNC), RGsB (3 BNC)
  ▸ Component (3 BNC), S-video (4-pin mini-DIN), composite (1 BNC)
  ▸ Independent input configuration per channel

• 2 Independently Scaled Outputs:
  ▸ Simultaneous BNC (RGBHV) + HD15 connections
  ▸ Resolution support: 640×480 to 1400×1050
  ▸ HDTV 720p/60 compatibility

---

Extron’s Award-Winning Video Processing

Advanced Image Enhancement

• DMI™ Technology: Dynamic Motion Interpolation reduces motion artifacts

• AFL™ Synchronization: Glitch-free frame rate conversion

• 3:2/2:2 Pulldown: Perfect film-to-video conversion

• 8 Vertical/4 Horizontal Filters: Customizable image optimization

Precision Audio Handling

• 8 Balanced/Unbalanced Inputs (captive screw)

• 2 Balanced/Unbalanced Outputs

• Audio Breakaway: Flexible signal routing

• Gain Controls: ±12dB adjustment per channel

---

Technical Specifications

---

System Integration Advantages

Control Ecosystem Compatibility

• Native Extron Control (IP Link® compatible)

• AMX/Crestron Ready (RS-232/IP protocols)

• Windows® Software Included

Installation Features

• 3U Rack Space: Only 5.25″ height

• Test Patterns: Built-in calibration signals

• Security Lockout: Front panel disable

---

Professional Applications

Where Integrators Deploy the ISM 482

• Corporate AV: Executive briefing centers

• Education: Lecture capture systems

• Government: Situation rooms

• Digital Signage: Multi-zone content distribution

Legacy System Support

• Replaces older Extron SW8/SW16 systems

• Maintains compatibility with 4:3 and 16:9 displays

---

Complete Package Details

Optional Accessories:

• DVI output card (70-244-01)

• IR 701 remote control

---

Why This Retired Model Still Excels

✅ Military-Grade Reliability: Extron’s legendary build quality
✅ Future-Proof Processing: Outperforms many new mid-range switchers
✅ Cost Effective: Fraction of original $3,500+ MSRP

⚠️ Final Units Available – Fully Tested
▸ Professional refurbishment process
▸ 90-day functional warranty
